Single Acting Hydraulic Valve

October 29, 2023 Post a Comment

Single acting hydraulic valve

A single-acting hydraulic cylinder includes just one port. This is where the hydraulic fluid enters and forces the plunger out in one direction. A double-acting cylinder includes two ports. One for the hydraulic fluid to enter and extend the plunger, and the other for retracting the cylinder.

What is the difference between a single-acting and a double-acting hydraulic?

The main difference between single and double acting hydraulic cylinders is that a double acting hydraulic cylinder uses hydraulic pressure to move a piston in two directions, while a single acting hydraulic cylinder relies on a spring or gravity to return to its original position.

Where are single-acting hydraulic cylinders used?

Where Are Single Action Cylinders Used?

In applications where the working fluid is doing part of the work, opposed by an external force.
Anyplace where machine weight/load or gravity come into play. They are also used as tensioning devices.

What is a single-acting hydraulic pump?

In a single acting hydraulic cylinder, the fluid applies pressure only on a single side of the piston. Because the hydraulic fluid is oil, it does not compress. This means that whenever a force is applied either through your hands, or a gas or electric pump, the cylinder shaft will extend.

How does a single-acting hydraulic cylinder work?

Single Acting Hydraulic Cylinders Single acting cylinders work where either a push or a pull force is required, so the hydraulic fluid only acts on one side of the piston rod. Another force (such as gravity, the weight of the load or a spring), operates the cylinder in the other direction.

How do I know if my hydraulic cylinder is double-acting?

A Double Acting cylinder uses hydraulic power to both extend and retract. A simple way to tell the cylinders apart is by looking at the number of ports. A Single Acting cylinder will have one port for the connection of a hydraulic cylinders Hydraulic Hose Fittings A Double Acting cylinder will have TWO ports.

What is double-acting valve?

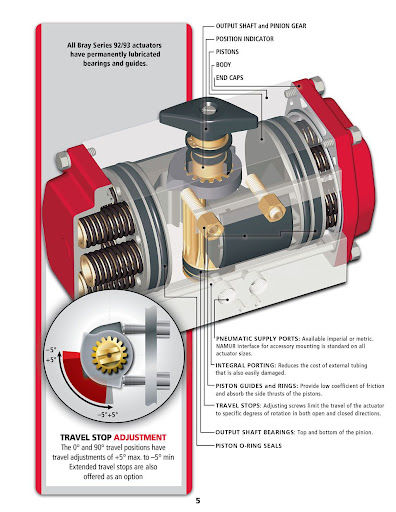

Double-acting actuators have air or liquid supplied to both sides of the piston with one side at higher pressure, which achieves the movement required to actuate the valve. This configuration uses pneumatic or hydraulic pressure of the air or liquid energy to open and close the valve.

What are the two types of single-acting cylinders?

There are two different types of single acting cylinders, push and pull.

Push Type Cylinder: Air enters to push the piston out of the cylinder.
Pull Type Cylinder: Air enters to pull the piston inside of the cylinder.

What are the examples of single acting cylinder?

A car jack is an example of a simple single-acting cylinder. The jack handle is pumped, thus putting building pressure on the single-direction seal, which allows the jack to lift the car. When the job is complete, the jack is let down by release of the pressure.

Why is a single acting cylinder used?

Single acting cylinders are ideal where powered motion is required in one direction only: Clamping - a work piece can be held in position by jaws operated by the cylinder; a process, such as drilling, can then be carried out, before the spring retracts the jaws.

What is application of single acting cylinder?

Single-acting cylinders are found in most kinds of reciprocating engine. They are almost universal in internal combustion engines (e.g. petrol and diesel engines) and are also used in many external combustion engines such as Stirling engines and some steam engines. They are also found in pumps and hydraulic rams.

How do you bleed a single-acting hydraulic cylinder?

How to bleed a single-acting hydraulic cylinder

Extend the cylinder fully and leave it in this position for a few minutes to allow the air to rise naturally.
Partially close the cylinder when all the air has raised to the top of the cylinder.
Open the bleed valve at the top for the air to escape.

What is a single action pump?

Single Action (Pump) Single action pumps only use a single pump chamber per drive rod. They are only capable of producing pressure while the plunger or piston is moving into the pump chamber. Single action pumps are common in all sizes of reciprocating plunger and piston pumps.

How many valves are required for a single-acting hand pump?

VALVING: For Single-Acting cylinders, use a pump with a 2-way or 3- way valve and one hose. For Double-Acting cylinders, use a pump with a 4-way valve and two hoses.

What is a double-acting hydraulic cylinder?

The double-acting hydraulic cylinder uses hydraulic power to extend and retract the cylinder. Force is generated in both directions, unlike the single-acting cylinder that produces force in only one direction. This gives the cylinder the ability to both push and pull.

Can I use a double-acting cylinder as a single-acting?

You can use a double-acting cylinder as a single-acting. Simply use a 3-way solenoid and only supply air to the bottom of the cylinder. Leave the top air port of the cylinder open (or optionally install an exhaust muffler into open port as shown in the image).

Does a single acting cylinder need a vent?

Venting Requirements The spring mechanism in single-action cylinder interiors requires venting, giving the assembly an outlet to the outdoors. However, if not monitored properly, particles can enter the cylinder and cause potential breakdowns or gradual decline in performance.

Where are double-acting cylinders used?

Double-acting hydraulic cylinders are also used in a wide variety of non-industrial applications such as:

Elevators.
Forklifts.
Suspension systems in cars and other vehicles as well as airplane landing gears.
Drilling.
Earth-moving and other construction equipment.
Log-splitters.
Car transport carriers.

How do you make a hydraulic cylinder go faster?

One way to make the cylinders go faster is to increase the pressure inside them. This can be done by either increasing the amount of fluid that's flowing through the cylinder or by using a higher pressure spring. Another way to make the cylinders go faster is to reduce the amount of friction that they experience.

What is the difference between single-acting and double acting solenoid valve?

The difference between double and single solenoids is solely how they operate electrically. A double solenoid has two solenoid coils: energizing the “A” side coil moves the valve into the A position, and energizing the “B” side coil moves the valve into the B position. Not energizing both coils has no effect.
