Square Wave To Triangular Wave
How a triangular wave generator is derived from square wave generator? Explanation: The output waveform of the integrator is triangular, if its input is square wave. Therefore, a triangular wave generator can be obtained by connecting an integrator at the output of the square wave generator.
What is formula for triangular wave?
A bandlimited triangle wave pictured in the time domain (top) and frequency domain (bottom). The fundamental is at 220 Hz (A3). General information. General definition. x ( t ) = 4 | t − ⌊ t + 3 / 4 ⌋ + 1 / 4 | − 1 {\displaystyle x(t)=4\left\vert t-\left\lfloor t+3/4\right\rfloor +1/4\right\vert -1}
How do you turn a square wave into a sine wave?
The simplest method of converting a square wave to a sine wave is by filtering. Basically, a square wave consists of a fundamental frequency with a lot of higher harmonics. If the harmonics can be removed, then a sine wave of the fundamental frequency remains.
Can I convert square wave inverter to sine wave?
A square wave to sine wave converter can be built using 6 passive components, namely capacitors and three resistors. Using these three capacitors and three resistors, a 3 stage RC network can be built that takes a square wave as an input and sine wave as an output.
How you can generate triangular wave using op-amp?
A Triangular Wave Generator Using Op amp can be formed by simply connecting an integrator to the square wave generator. Triangular wave is generated by alternatively charging and discharging a capacitor with a constant current.
Which block in function generator converts triangular wave to rectangular wave?
- Logic gate.
- Flip flop.
What is rms value of square wave?
| WAVEFORM | MAX. VALUE | RMS VALUE |
|---|---|---|
| SINUSOIDAL WAVE | A m | A m 2 |
| SQUARE WAVE | A m | A m |
| TRIANGULAR WAVE | A m | A m 3 |
| HALF-WAVE RECTIFIED WAVE | A m | A m 2 |
What is the equation of a square wave?
Here, T is the period of the square wave and f is its frequency, which are related by the equation f = 1/T.
What is triangular wave generator?
A triangular wave generator is an electronic circuit, which generates a triangular wave. The block diagram of a triangular wave generator is shown in the following figure − The block diagram of a triangular wave generator contains mainly two blocks: a square wave generator and an integrator.

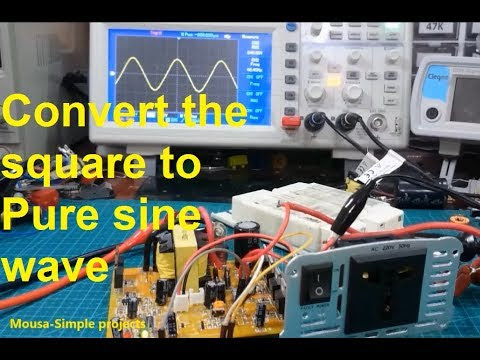

How do you convert a modified square wave inverter to pure sine?
Step number four is using a low-pass filter to converting the s PWM to pure sine-wave. And finally
How do you remove noise from a square wave?
anyway to remove the spike/noise ? Use a zener diode and a resistor in a series combination and then in parallel with a small capacitor to absorb the spikes. The diode should turn on fast and the capacitor should have low lead inductance.
What does a low pass filter do to a square wave?
The Integrator is basically a low pass filter circuit operating in the time domain that converts a square wave “step” response input signal into a triangular shaped waveform output as the capacitor charges and discharges. A Triangular waveform consists of alternate but equal, positive and negative ramps.
What type of circuit can be used to generate a sine wave from a square wave?
The square-to-sine wave generator circuit that we will build with only resistors and capacitors is shown below. The breadboard circuit of the circuit above is shown below. So our input signal to the circuit is a square wave.
Will modified sine wave damage electronics?
The problem is that while it's not technically wrong to use modified sine wave inverters with your electronics, there are some risks involved. Indeed, these sine wave inverters can potentially damage some types of electronic devices. You could say that this is more a case of an exception than a rule.
Are square wave inverters good?
Square wave inverters are less reliable and also unsafe to use for appliances. Sine inverters are highly safe to use. Square wave inverters produce a very loud noise when used. Sine wave inverters produce normal sound only.
How do you make a triangular wave generator?
- Step 1 : Finding values of R2 and R3. VO(P−P)=2R2R3×VSAT. 6=2R2R3×VSAT. Let VSAT = 13V and R2 = 10KΩ 6=2×10KR3×13.
- Step 2 : Finding values of R1 and C1. Frequency formula is given by, f=R34R1C1R2. Given f = 5KHz 5K=43.33KΩ4R1C1×10KΩ ...
- Step 3 : Designed circuit diagram. ADD COMMENT SHARE EDIT. Dashboard.
How do you make a triangular wave using 555 timer?
A 555 timer IC, 2 resistors and two capacitors make the triangle wave. The IC is connected in a 50% duty-cycle astable square-wave oscillator circuit. The square-wave output is fed from pin 3 of the IC to an RC shaping circuit.
How can you obtain triangular wave using Schmitt trigger?
When the output of Schmitt trigger is low, the integrator develops a rising ramp which increases till it reaches UTP, as illustrated in figure. At this point the output of the Schmitt Trigger switches to the high state and forces the triangular-wave to reverse in direction.
Which circuit converts triangular wave into sine wave?
Using an RC network, we can reshape a triangle wave into a sine wave. A circuit like this can be very important because triangle waves, though not as common as square waves, are a standard waveform used in electronics. They are present on most function generators available.
Why function generator is called generator?
The name of the function generator arises from the fact that it is able to generate a number of different functions or waveforms.
